Movement No.H24x

Online Instruction Manual

To reset the watch (All Reset)

View in illustrations

  • 1

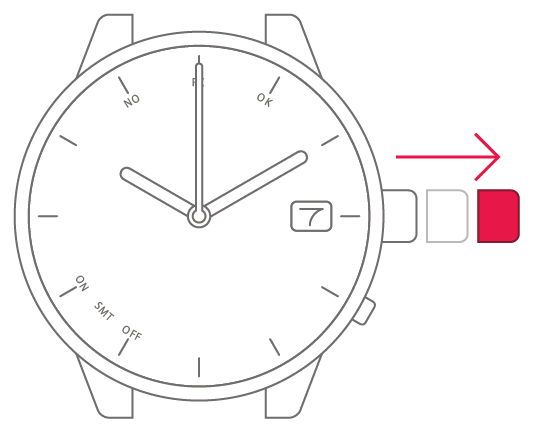

  • Pull the crown out 2 steps.

  • 2

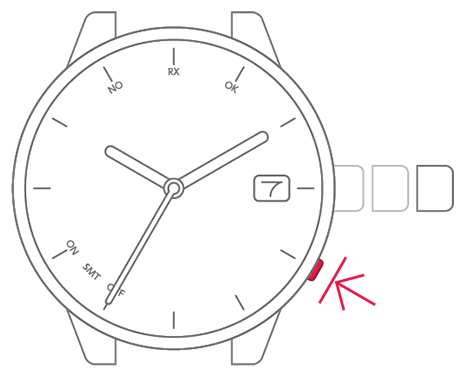

  • Press and hold the lower-right
    button for at least 7 seconds.

  • 3

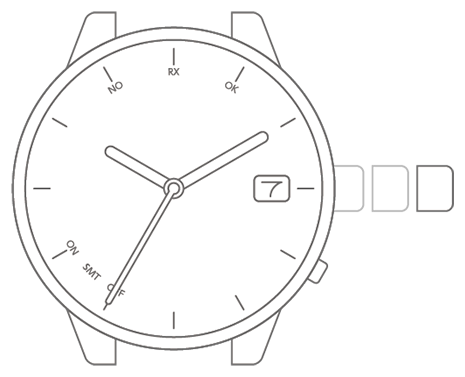

  • When you release the lower-right
    button, All Reset begins. Wait
    until the hands stop moving.

●Always adjust the reference position after performing All Reset.

To correct the
reference position

  • 4

  • Turn the crown to set the hour
    hand to 0 (12-o'clock position)
    and the date indication to a
    position midway between 31
    and 1.

The date changes as the hour hand moves.

If you turn the crown quickly, the hour hand continues moving. To stop this, turn the crown just slightly.

  • 5

  • Press and release the lower-
    right button.

The hands may not move if they are already in the correct position.

  • 6

  • Turn the crown to move the
    minute and second hands to 0
    (12-o'clock position).

The hands may not move if they are already in the correct position.

If you turn the crown quickly, the minute and second hands continue moving. To stop this, turn the crown just slightly.

  • 7

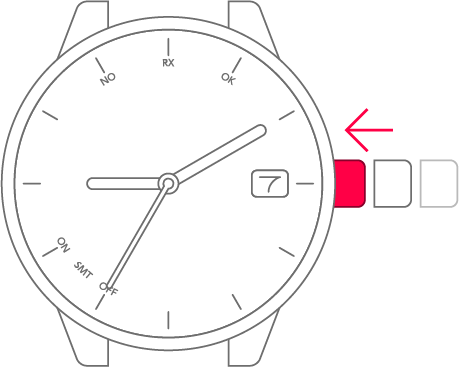

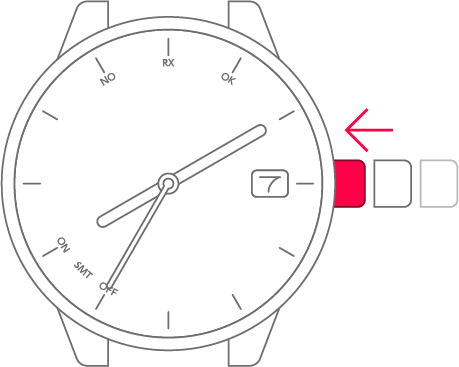

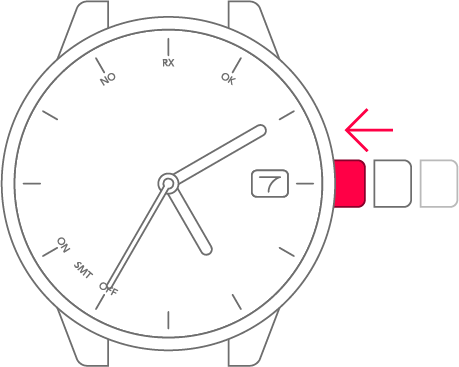

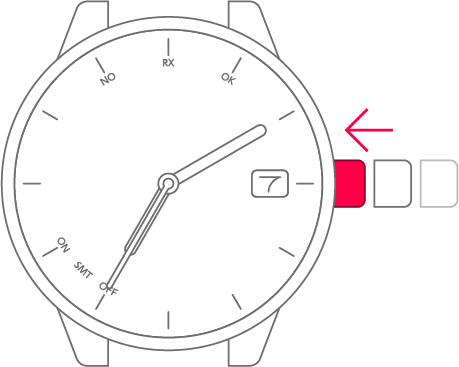

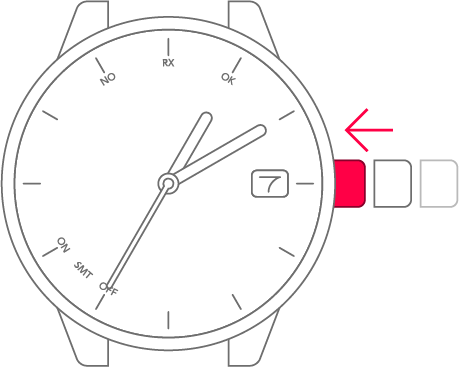

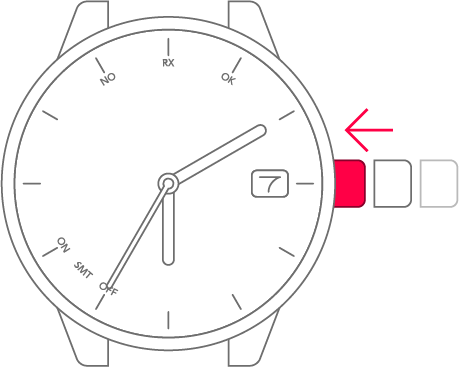

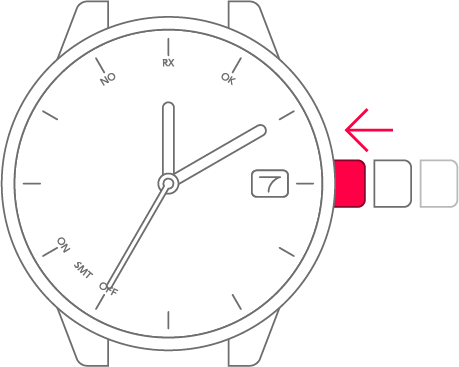

  • Push the crown back in to
    complete the process.

The watch now shows the current time.

To set the watch to the
correct time for your region

View in illustrations

  • 1

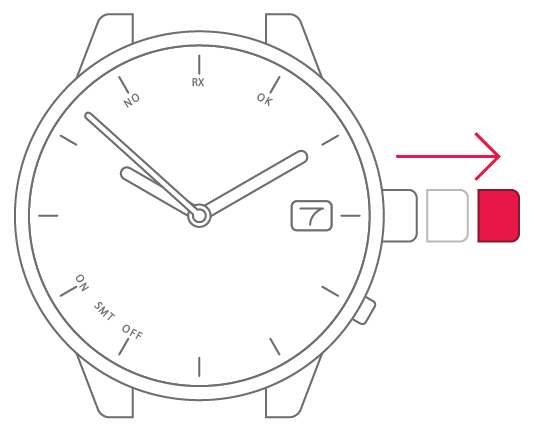

  • Pull the crown out 1 step.

  • 2

  • Check the time difference from
    London     for the overseas region
    for which you want to set the
    time.

> Refer to the time-difference quick reference chart.

●London time is the standard used for global time differences (UTC).

  • 3

  • Select the time difference from
    London     shown in the quick
    reference chart.

An asterisk (*) indicates a region with no signal reception.When using the watch, bear in mind that there is a monthly time variation of ±15 seconds.

  • 4

  • Turn the crown to move the
    second hand.

  • 　

  • Set the second hand to
    the 0 seconds position.

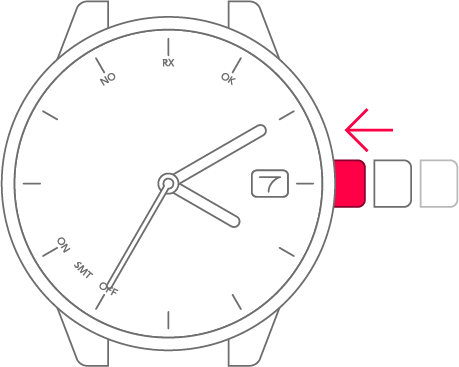

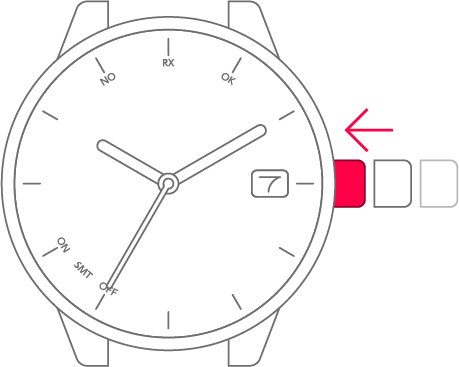

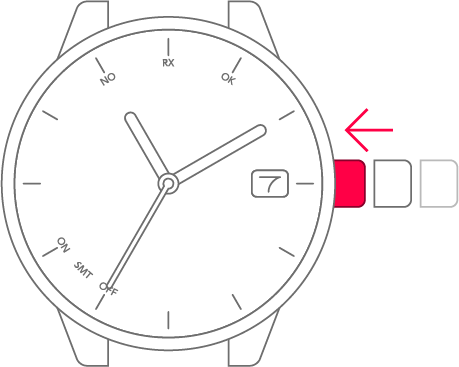

  • 5

  • Push the crown back in to
    complete the process.

The representative region names shown on the watch vary depending on the model.

The time differences built into the watch and the information on the applicable regions are valid for the time when the watch was first released.

Tp receive signals manually

View in illustrations

  • 1

  • Check that the crown is fully
    pushed in.

  • 2

  • Press and hold the lower-right
    button for at least 2 seconds.

  • 3

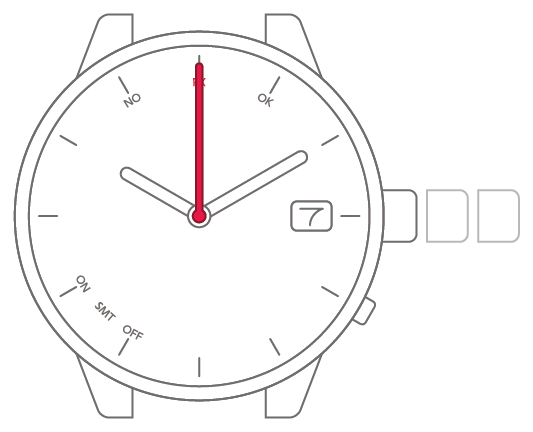

  • The second hand points to “RX”
    and signal reception begins.

If signal reception succeeds The time is adjusted correctly.
If signal reception fails The time is not adjusted.

Once signal reception is completed, the second hand moves normally again.

It takes between about 2 and 15 minutes for signal reception to complete.

To interrupt signal reception, press and hold the lower-right button for at least 2 seconds.

To set the time
and date manually

View in illustrations

  • 1

  • Pull the crown out 2 steps.

  • 2

  • Press and release the lower-right
    button. The second hand points
    to 0 seconds.

  • 3

  • Turn the crown to set the
    minutes.

The second and minute hands move synchronously.

If you turn the crown quickly, the minute and second hands continue moving. To stop this, turn the crown just slightly.

  • 4

  • Press and release the lower-right
    button.

  • 5

  • Turn the crown to set the time
    and date.

The date changes as the hour hand moves.

The date changes when the hour hand reaches 12:00 am.

If you turn the crown quickly, the hour hand continues moving. To stop this, turn the crown just slightly.

  • 6

  • Press and release the lower-right
    button.

  • 7

  • Select the current year and
    month.

●Your selection appears in step 8.

  • 8

  • Turn the crown to move the
    second hand.

  • Set the second hand to
    the 8 seconds position.
    Set the second hand to
    the 13 seconds position.
    Set the second hand to
    the 18 seconds position.
    Set the second hand to
    the 23 seconds position.
    Set the second hand to
    the 28 seconds position.
    Set the second hand to
    the 33 seconds position.
    Set the second hand to
    the 38 seconds position.
    Set the second hand to
    the 43 seconds position.
    Set the second hand to
    the 48 seconds position.
    Set the second hand to
    the 53 seconds position.
    Set the second hand to
    the 58 seconds position.
    Set the second hand to
    the 3 seconds position.
    Set the second hand to
    the 5 seconds position.
    Set the second hand to
    the 10 seconds position.
    Set the second hand to
    the 15 seconds position.
    Set the second hand to
    the 20 seconds position.
    Set the second hand to
    the 25 seconds position.
    Set the second hand to
    the 30 seconds position.
    Set the second hand to
    the 35 seconds position.
    Set the second hand to
    the 40 seconds position.
    Set the second hand to
    the 45 seconds position.
    Set the second hand to
    the 50 seconds position.
    Set the second hand to
    the 55 seconds position.
    Set the second hand to
    the 0 seconds position.
    Set the second hand to
    the 6 seconds position.
    Set the second hand to
    the 11 seconds position.
    Set the second hand to
    the 16 seconds position.
    Set the second hand to
    the 21 seconds position.
    Set the second hand to
    the 26 seconds position.
    Set the second hand to
    the 31 seconds position.
    Set the second hand to
    the 36 seconds position.
    Set the second hand to
    the 41 seconds position.
    Set the second hand to
    the 46 seconds position.
    Set the second hand to
    the 51 seconds position.
    Set the second hand to
    the 56 seconds position.
    Set the second hand to
    the 1 seconds position.
    Set the second hand to
    the 7 seconds position.
    Set the second hand to
    the 12 seconds position.
    Set the second hand to
    the 17 seconds position.
    Set the second hand to
    the 22 seconds position.
    Set the second hand to
    the 27 seconds position.
    Set the second hand to
    the 32 seconds position.
    Set the second hand to
    the 37 seconds position.
    Set the second hand to
    the 42 seconds position.
    Set the second hand to
    the 47 seconds position.
    Set the second hand to
    the 52 seconds position.
    Set the second hand to
    the 57 seconds position.
    Set the second hand to
    the 2 seconds position.
    Set the second hand to
    the 8 seconds position.
    Set the second hand to
    the 13 seconds position.
    Set the second hand to
    the 18 seconds position.
    Set the second hand to
    the 23 seconds position.
    Set the second hand to
    the 28 seconds position.
    Set the second hand to
    the 33 seconds position.
    Set the second hand to
    the 38 seconds position.
    Set the second hand to
    the 43 seconds position.
    Set the second hand to
    the 48 seconds position.
    Set the second hand to
    the 53 seconds position.
    Set the second hand to
    the 58 seconds position.
    Set the second hand to
    the 3 seconds position.
    Set the second hand to
    the 5 seconds position.
    Set the second hand to
    the 10 seconds position.
    Set the second hand to
    the 15 seconds position.
    Set the second hand to
    the 20 seconds position.
    Set the second hand to
    the 25 seconds position.
    Set the second hand to
    the 30 seconds position.
    Set the second hand to
    the 35 seconds position.
    Set the second hand to
    the 40 seconds position.
    Set the second hand to
    the 45 seconds position.
    Set the second hand to
    the 50 seconds position.
    Set the second hand to
    the 55 seconds position.
    Set the second hand to
    the 0 seconds position.
    Set the second hand to
    the 6 seconds position.
    Set the second hand to
    the 11 seconds position.
    Set the second hand to
    the 16 seconds position.
    Set the second hand to
    the 21 seconds position.
    Set the second hand to
    the 26 seconds position.
    Set the second hand to
    the 31 seconds position.
    Set the second hand to
    the 36 seconds position.
    Set the second hand to
    the 41 seconds position.
    Set the second hand to
    the 46 seconds position.
    Set the second hand to
    the 51 seconds position.
    Set the second hand to
    the 56 seconds position.
    Set the second hand to
    the 1 seconds position.
    Set the second hand to
    the 7 seconds position.
    Set the second hand to
    the 12 seconds position.
    Set the second hand to
    the 17 seconds position.
    Set the second hand to
    the 22 seconds position.
    Set the second hand to
    the 27 seconds position.
    Set the second hand to
    the 32 seconds position.
    Set the second hand to
    the 37 seconds position.
    Set the second hand to
    the 42 seconds position.
    Set the second hand to
    the 47 seconds position.
    Set the second hand to
    the 52 seconds position.
    Set the second hand to
    the 57 seconds position.
    Set the second hand to
    the 2 seconds position.
    Set the second hand to
    the 8 seconds position.
    Set the second hand to
    the 13 seconds position.
    Set the second hand to
    the 18 seconds position.
    Set the second hand to
    the 23 seconds position.
    Set the second hand to
    the 28 seconds position.
    Set the second hand to
    the 33 seconds position.
    Set the second hand to
    the 38 seconds position.
    Set the second hand to
    the 43 seconds position.
    Set the second hand to
    the 48 seconds position.
    Set the second hand to
    the 53 seconds position.
    Set the second hand to
    the 58 seconds position.
    Set the second hand to
    the 3 seconds position.
    Set the second hand to
    the 5 seconds position.
    Set the second hand to
    the 10 seconds position.
    Set the second hand to
    the 15 seconds position.
    Set the second hand to
    the 20 seconds position.
    Set the second hand to
    the 25 seconds position.
    Set the second hand to
    the 30 seconds position.
    Set the second hand to
    the 35 seconds position.
    Set the second hand to
    the 40 seconds position.
    Set the second hand to
    the 45 seconds position.
    Set the second hand to
    the 50 seconds position.
    Set the second hand to
    the 55 seconds position.
    Set the second hand to
    the 0 seconds position.
    Set the second hand to
    the 6 seconds position.
    Set the second hand to
    the 11 seconds position.
    Set the second hand to
    the 16 seconds position.
    Set the second hand to
    the 21 seconds position.
    Set the second hand to
    the 26 seconds position.
    Set the second hand to
    the 31 seconds position.
    Set the second hand to
    the 36 seconds position.
    Set the second hand to
    the 41 seconds position.
    Set the second hand to
    the 46 seconds position.
    Set the second hand to
    the 51 seconds position.
    Set the second hand to
    the 56 seconds position.
    Set the second hand to
    the 1 seconds position.
    Set the second hand to
    the 7 seconds position.
    Set the second hand to
    the 12 seconds position.
    Set the second hand to
    the 17 seconds position.
    Set the second hand to
    the 22 seconds position.
    Set the second hand to
    the 27 seconds position.
    Set the second hand to
    the 32 seconds position.
    Set the second hand to
    the 37 seconds position.
    Set the second hand to
    the 42 seconds position.
    Set the second hand to
    the 47 seconds position.
    Set the second hand to
    the 52 seconds position.
    Set the second hand to
    the 57 seconds position.
    Set the second hand to
    the 2 seconds position.
    Set the second hand to
    the 8 seconds position.
    Set the second hand to
    the 13 seconds position.
    Set the second hand to
    the 18 seconds position.
    Set the second hand to
    the 23 seconds position.
    Set the second hand to
    the 28 seconds position.
    Set the second hand to
    the 33 seconds position.
    Set the second hand to
    the 38 seconds position.
    Set the second hand to
    the 43 seconds position.
    Set the second hand to
    the 48 seconds position.
    Set the second hand to
    the 53 seconds position.
    Set the second hand to
    the 58 seconds position.
    Set the second hand to
    the 3 seconds position.

  • 9

  • Match the time to a time signal
    or other source and then push
    the crown back in to complete
    the process.
