H46*

Reference position

Checking and correcting the reference position

If the time or calendar is not shown correctly even after proper reception of the time info, check whether the current reference position is correct.

Caution

Be sure to check the current reference position
and adjust it only when the position is not correct.

  1. Push the crown in to position 0.
  2. Press and hold the upper right button B for 10 seconds or more.
  3. The hands and indication move to their current reference position.

    !

    Release the upper right button B as the hands start to move.

    !

    Proceed to the next step when the hands and indication stop.

  4. Checking the reference position
  5. !

    After the hands and indication stopped, check whether they are at correct positions referring to the figure below.
    The reference position must be corrected if any one of the positions is incorrect.

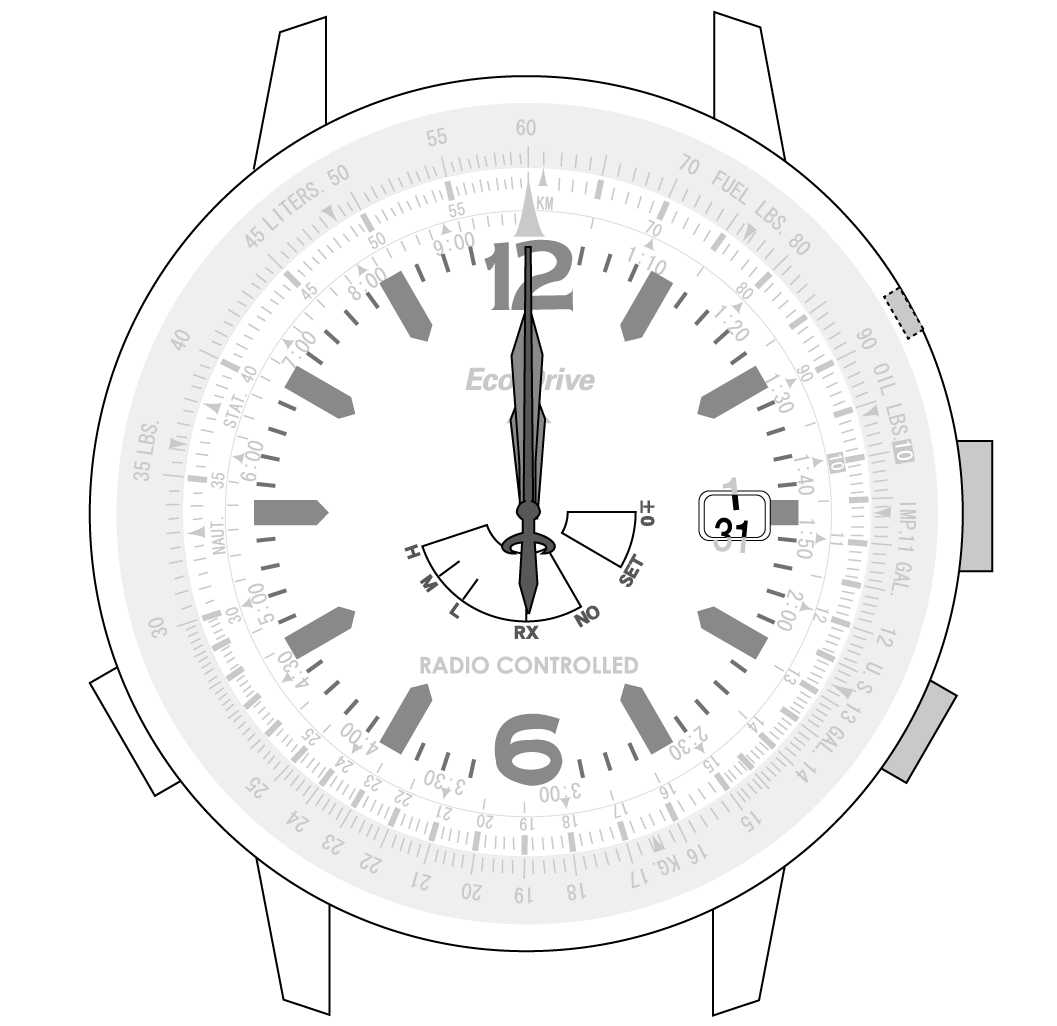

    Correct reference positions

    Hour, minute and second hands: 0 hour 00 minute 0 second

    Date indication: midway between “31” and “1”

    CorrectNo adjustment is required.
    Press and release the upper right button B to finish the procedure.
    (The hand returns to normal indication automatically in about 30 seconds without pressing the button.)
    Wrong Click here to proceed below.
  6. Pull the crown out to position 1.
  7. Rotate the crown to adjust the hour hand and the date indication to the correct reference position.
  8. !

    The hour hand and date indication move synchronously.

    !

    When you rotate the crown quickly a few times, the hand/indication will move continuously.
    To stop the rapid movement, rotate the crown in either direction.

  9. Pull the crown out to position 2.
  10. Rotate the crown to adjust the minute and second hands to the correct reference position.
  11. !

    The minute and second hands move synchronously.

    !

    When you rotate the crown quickly a few times, the hand/indication will move continuously.
    To stop the rapid movement, rotate the crown in either direction.

  12. Push the crown in to position 0.
  13. Press and release the upper right button B to finish the procedure.
  14. The watch returns to normal indication.

    !

    Adjust the time and calendar after finishing adjustment of the reference position.
    After All Reset, take a few second interval before starting further operations.
