Cal. No. H82*
Refine your searchH82*
Reference position
Checking and correcting the reference position
If the time or calendar is not shown correctly even after proper reception of the time info, check whether the current reference position is correct.
- Reference position is the base position of all hands and calendar to properly indicate the various functions of this watch.
- If the hands and indication do not reflect the correct reference position, the time and calendar will not be indicated accurately even if the time info is received.
Caution
Be sure to check the current reference position
and adjust it only when the position is not correct.
- Push the crown in to position 0.
- Press and hold the upper right button B for 10 seconds.
- Checking the reference position
- Pull the crown out to position 2.
- Press and release the upper right button B repeatedly to change the hand/indication to be corrected.
- Rotate the crown to adjust the hand/indication.
- Repeat steps 5 and 6.
- Push the crown in to position 0.
- Press and release the upper right button B.
The hands and indication move to their current reference position.
!
Proceed to the next step when the hands and indication stop.
!
After the hands and indication stopped, check whether they are at correct positions referring to the figure below.
The reference position must be corrected if any one of the positions is incorrect.

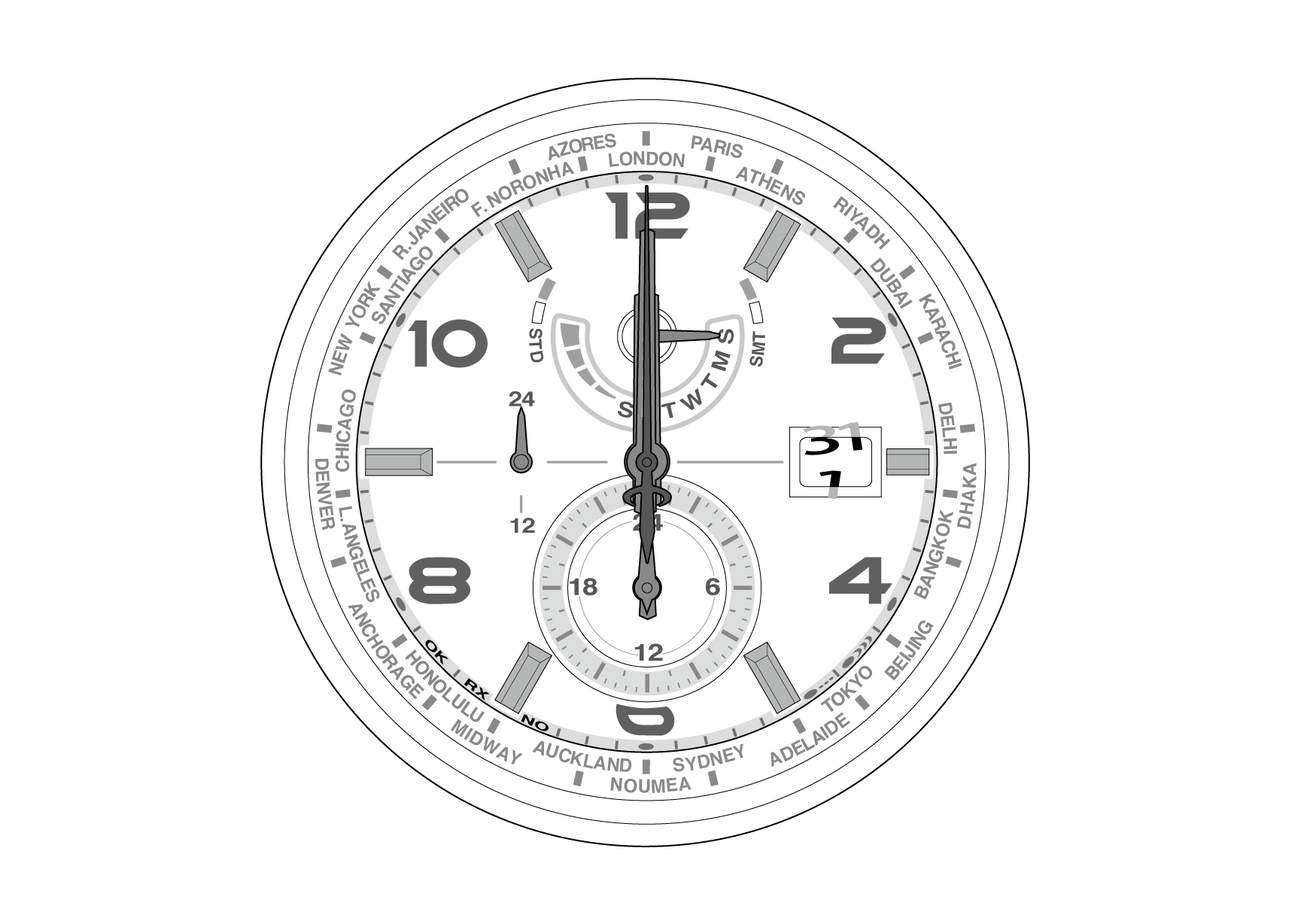

Correct reference positions
Hour, minute and second hands: 0 hour 00 minute 0 second
Position of the 24-hour hand: “24”
Date indication: midway between “31” and “1”
Dual time indication: 0 hour 00 minute
Function hand: “S” (Sunday)
| Correct | No adjustment is required. Press and release the upper right button B to finish the procedure. |
|---|---|
| Wrong | Click here to proceed below. |
The dial time indication becomes adjustable.
!
Each time you press the button, the target changes as follows:
Dual time indication → function hand and date indication → hour/minute/24-hour hands → second hand → (back to the top)
!
The hands and indications slightly move when selected to show they become adjustable.
!
Date indication changes to the next as the function hand rotates 5 times.
!
The hour, minute and 24-hour hands move synchronously.
!
When you rotate the crown quickly a few times, the hand/indication will move continuously.
To stop the rapid movement, rotate the crown in either direction.
The watch returns to normal indication.
