Correcting the
reference position

---

View in illustrations

The reference position refers to the position of the hands used as a reference for displaying the depth and maximum depth.

• 1

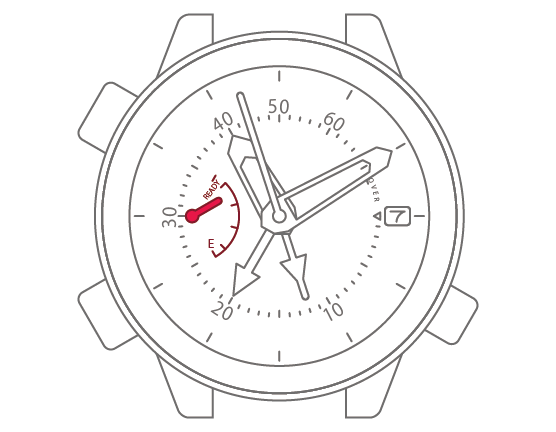

• Check the power reserve display.

If the power reserve is at 1 or below, charge the watch.

• 2

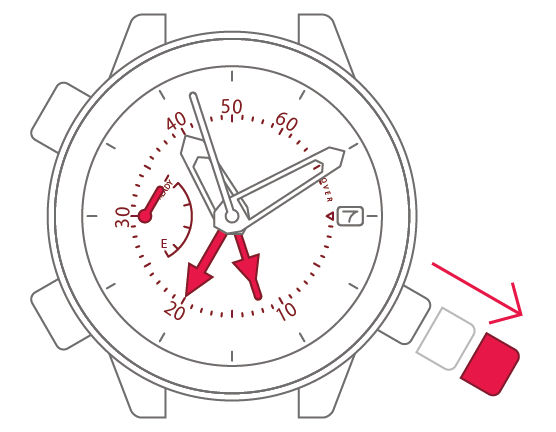

• Pull the crown 2 step.

The water depth hand and maximum water depth hands are at the current reference position.

The power reserve indicator hand points to “READY”.

• 3

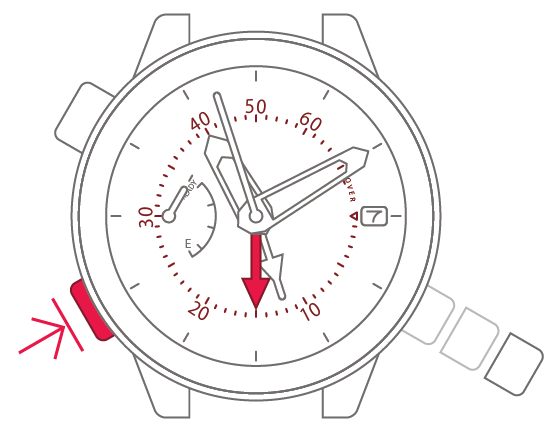

• Press and hold the the lower-left
  button for 2 seconds.

• 4

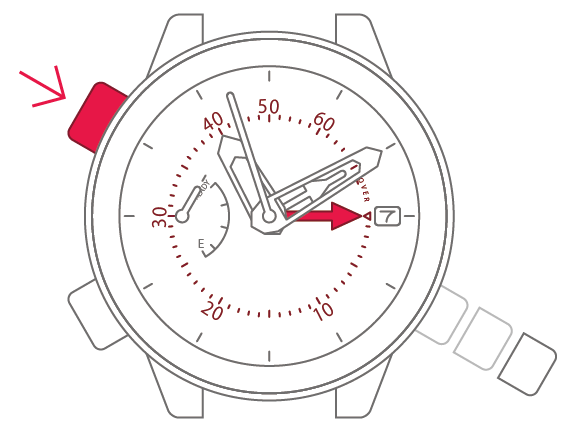

• Press and release the upper-left
  button to move the maximum
  water depth hand to “0 m
  (3 o’clock position)”.

The hand advances 1 gradation each time you press the button. Hold the button down to move the hand continuously.

• 5

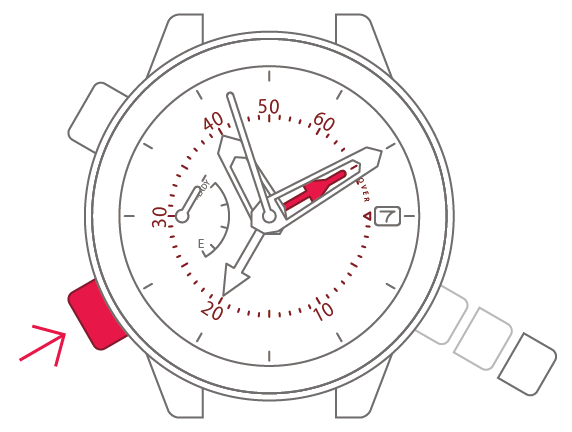

• Press and release the lower-left
  button.

• 6

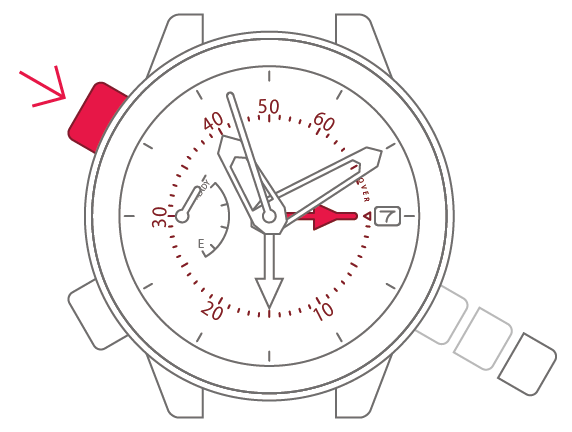

• Press and release the upper-left
  button to move the water depth
  hand to “0 m (3 o’clock position)”.

The hand advances 1 gradation each time you press the button. Hold the button down to move the hand continuously.

• 7

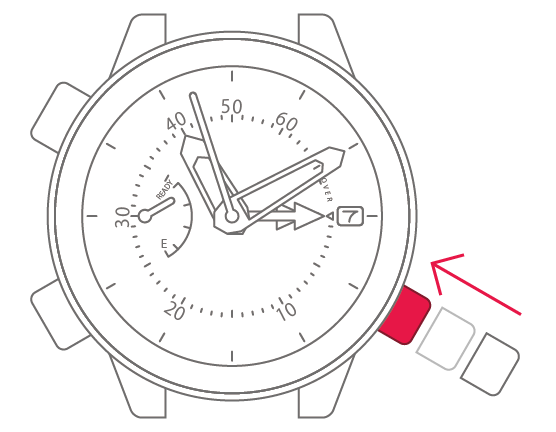

• Push the crown back in to
  complete the process.

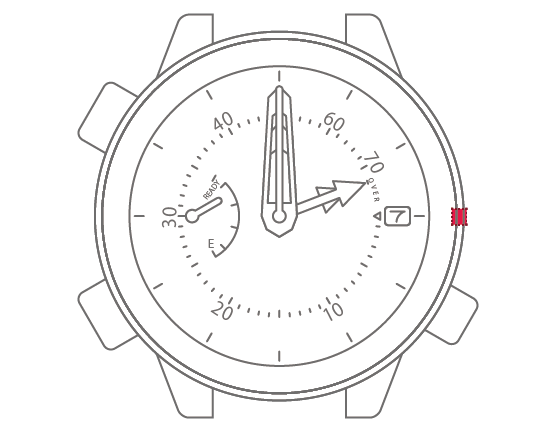

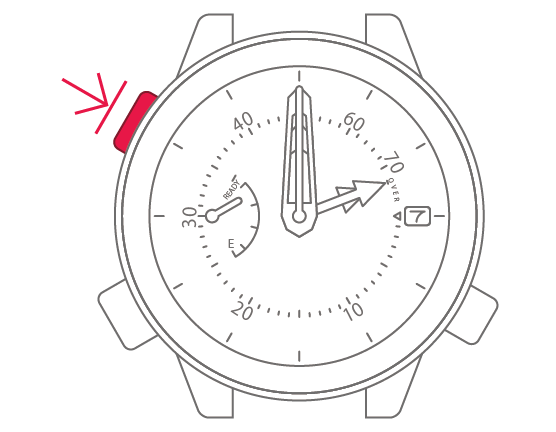

The hand continues to point to “OVER”
even after the reference
position was corrected

Consult an authorized
service center.
