Features

How to use


U60*

Chronograph

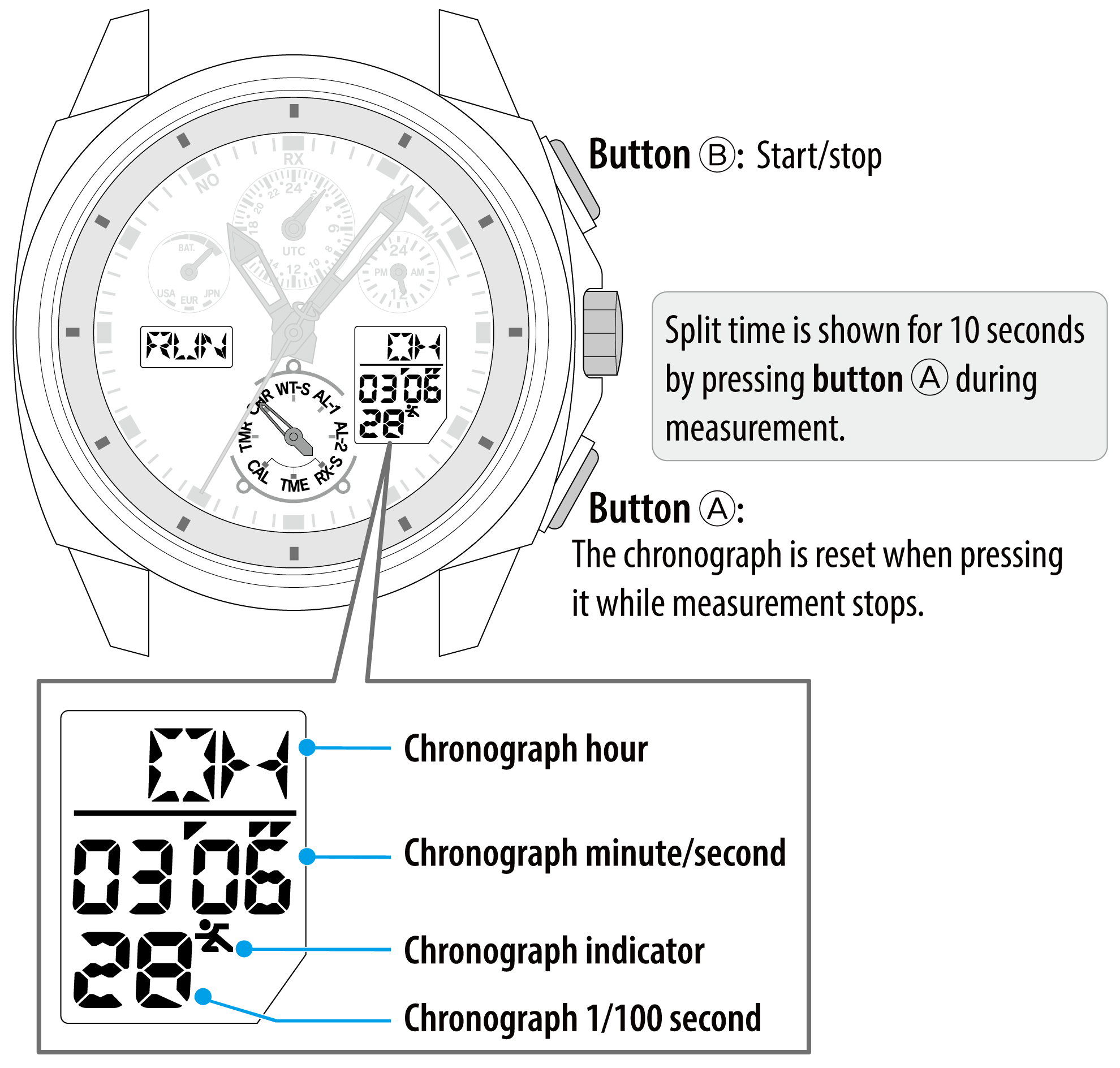

Using the chronograph

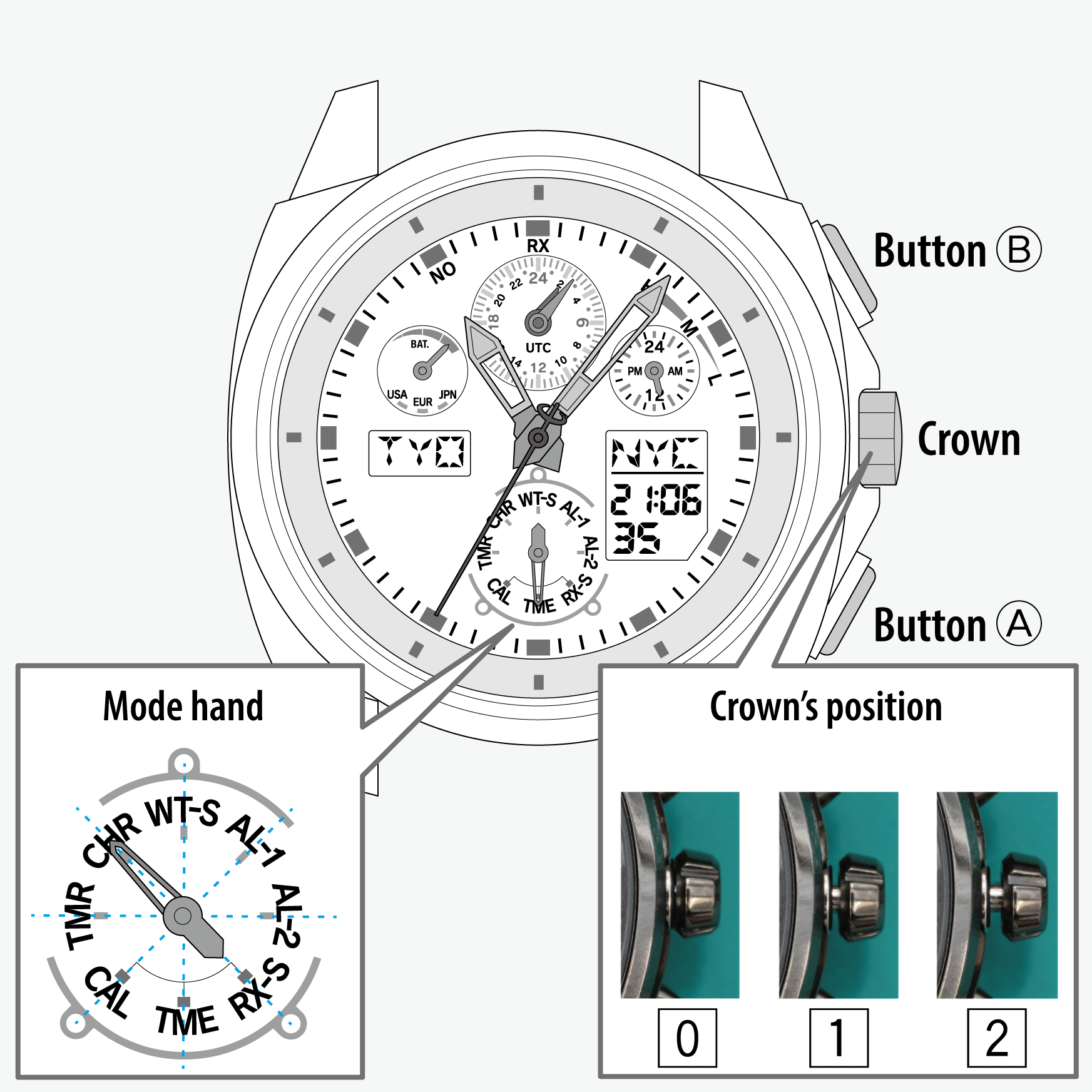

  1. Pull the crown out to position 1.
  2. An area name and “(M)” appear alternately on the digital indication (L).

  3. Rotate the crown to set the mode hand to [CHR].
  4. !

    Turn the crown so that the mode hand will point to the center of the mode name securely.

  5. Push the crown in to position 0.
  6. Start measurement.
  7. Measurement status is indicated on the digital indication (L).

    Indication on the digital indication (L)Measurement status

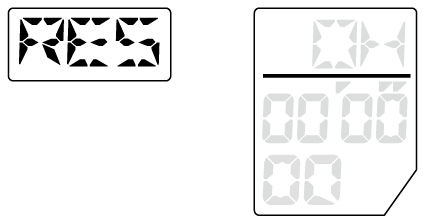

    RES (RESET)
    Reset

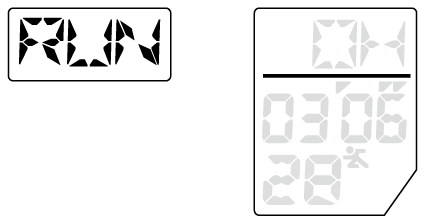

    RUN
    Measurement in progress

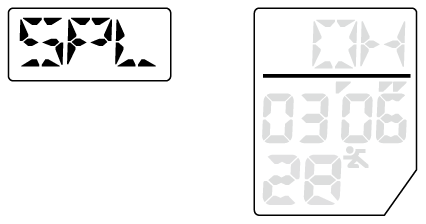

    SPL (SPLIT)
    While indicating split time

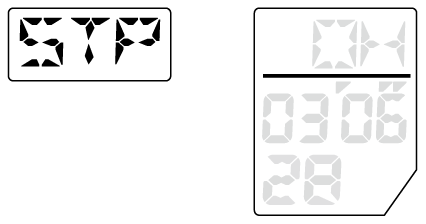

    STP (STOP)
    While measurement stops

    !

    After finishing measurement, change the mode of the watch to [TME] or [CAL] following the steps below.

  8. Pull the crown out to position 1.
  9. An area name and “(M)” appear alternately on the digital indication (L).

  10. Rotate the crown to set the mode hand to [TME] or [CAL].
  11. !

    Turn the crown so that the mode hand will point to the center of the mode name securely.

  12. Push the crown in to position 0 to finish the procedure.

During chronograph measurement or when the mode of the watch is [CHR], signal reception cannot be executed.
