Cal. No. U68*
Refine your searchU68*
Timer
Using the timer
Changing the countdown time

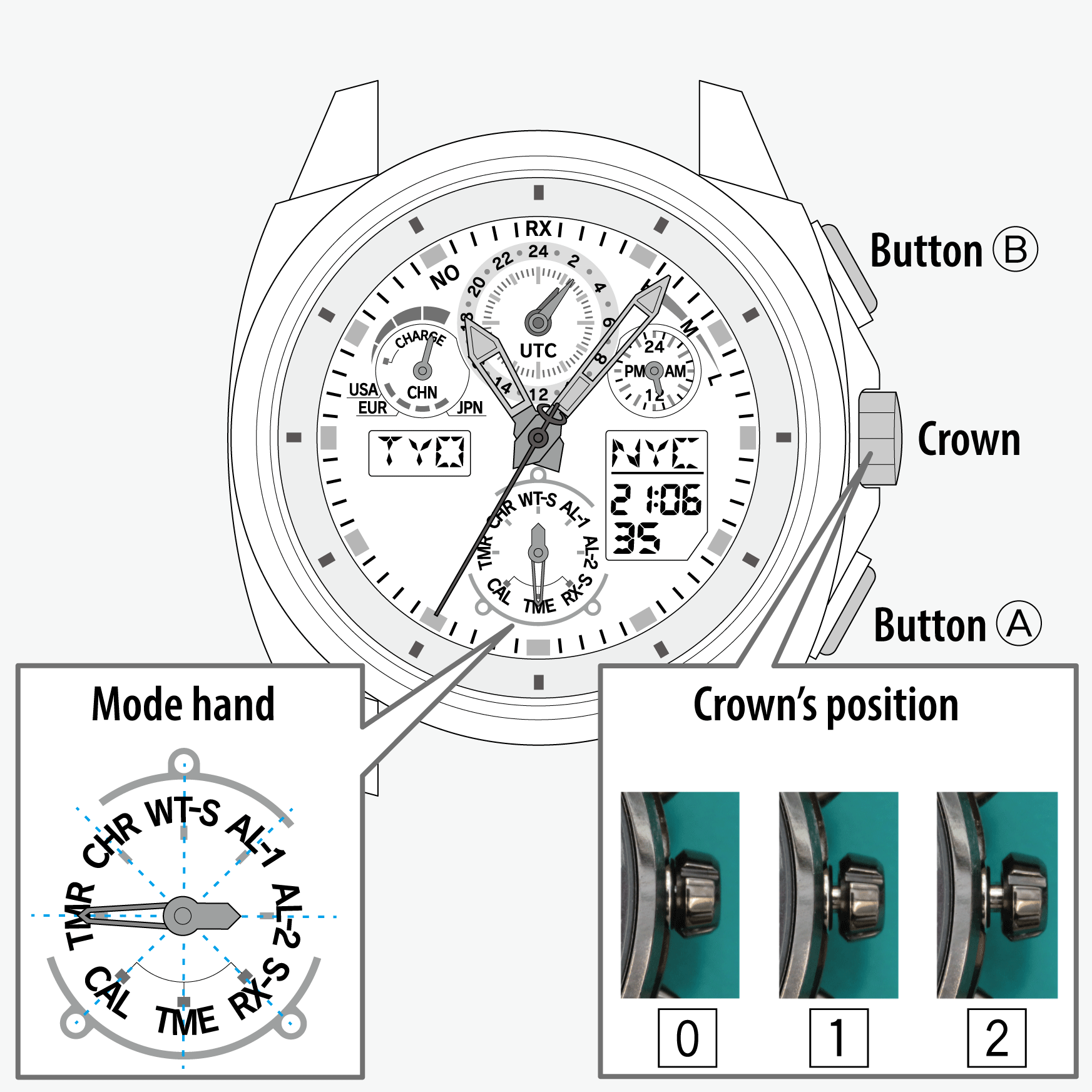

- Pull the crown out to position 1.
- Rotate the crown to set the mode hand to [TMR].
- Pull the crown out to position 2.
- Rotate the crown to set time.
- Push the crown in to position 0 to finish the procedure.
An area name and “(M)” appear alternately on the digital indication (L).
!
Turn the crown so that the mode hand will point to the center of the mode name securely.

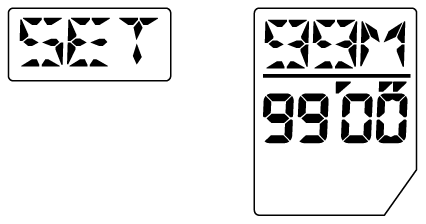

“SET” appears on the digital indication (L) and countdown time (minute) blinks on the digital indication (R).
!
When you rotate the crown quickly a few times, time indication will move continuously.
To stop the rapid movement, rotate the crown in either direction.

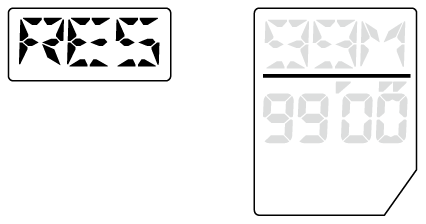

“RES” (RESET) appears on the digital indication (L).

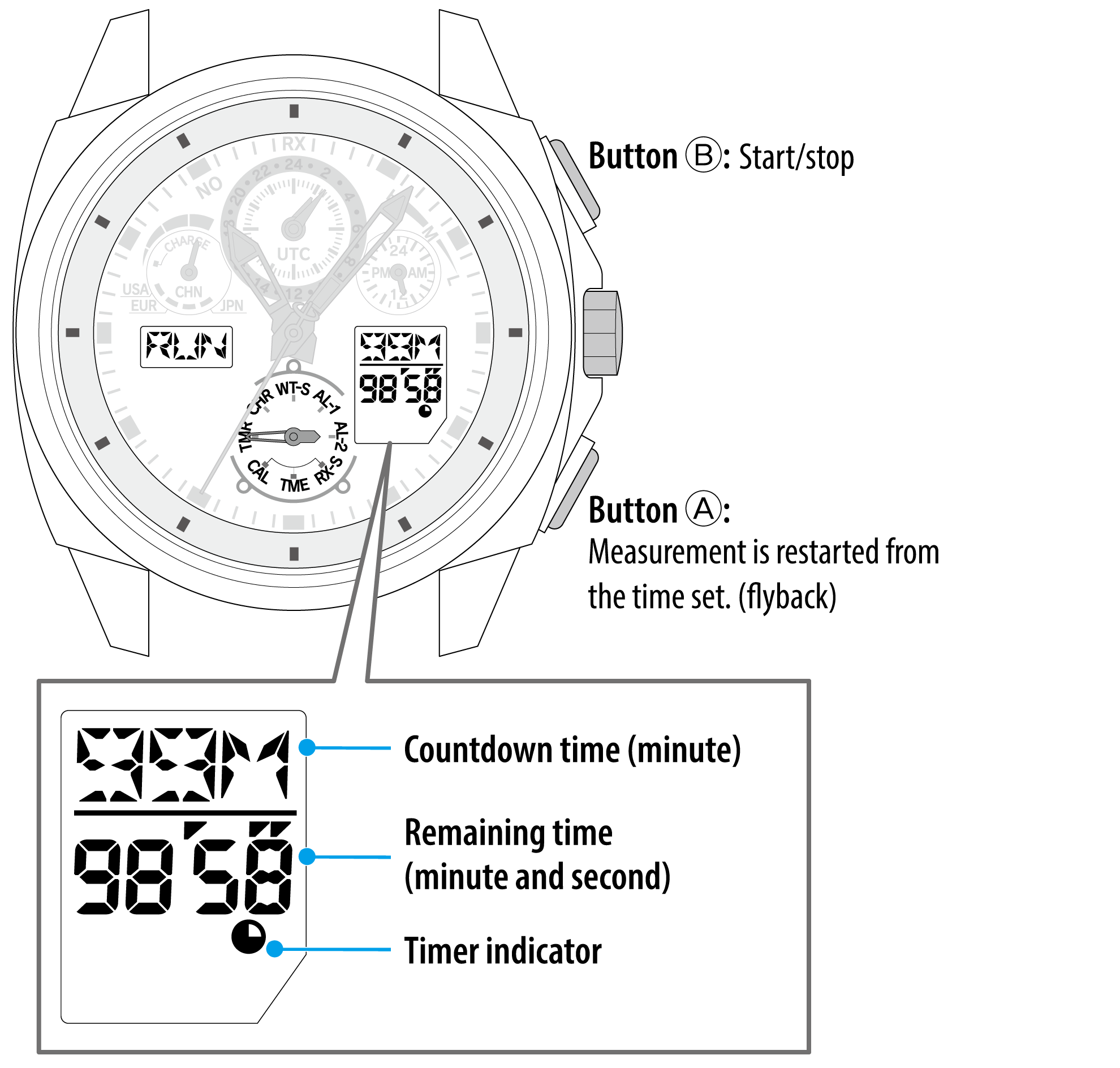

Using the timer
- Pull the crown out to position 1.
- Rotate the crown to set the mode hand to [TMR].
- Push the crown in to position 0.
- Start measurement.
- Pull the crown out to position 1.
- Rotate the crown to set the mode hand to [TME] or [CAL].
- Push the crown in to position 0 to finish the procedure.
An area name and “(M)” appear alternately on the digital indication (L).
!
Turn the crown so that the mode hand will point to the center of the mode name securely.
Measurement status is indicated on the digital indication (L).
| Indication on the digital indication (L) | Measurement status |
|---|---|
RES (RESET) |
Before start |

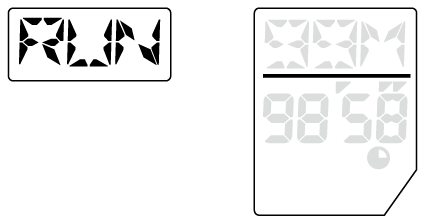

RUN |
Measurement in progress |

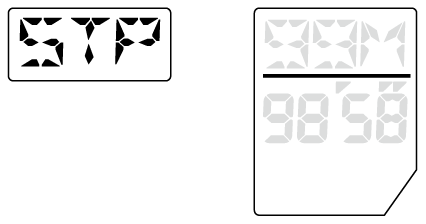

STP (STOP) |
While measurement stops |

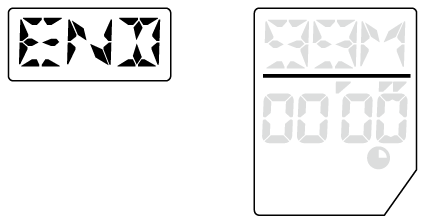

END |
After measurement |
!
After finishing measurement, change the mode of the watch to [TME] or [CAL] following the steps below.
An area name and “(M)” appear alternately on the digital indication (L).
!
Turn the crown so that the mode hand will point to the center of the mode name securely.
During timer measurement or when the mode of the watch is [TMR], signal reception cannot be executed.
