Cal. No. E67*
Refine your searchE67*
Reference position
Checking and correcting the reference position
If the time or calendar is not shown correctly even after proper reception of the time info, check whether the reference position is correct.
- Reference position is the base position of all hands and calendar to properly indicate the various functions of this watch.
- If the hands and indication do not reflect the correct reference position, the time and calendar will not be indicated accurately even if the time info is received.
Caution
Be sure to check the current reference position
and adjust it only when the position is not correct.

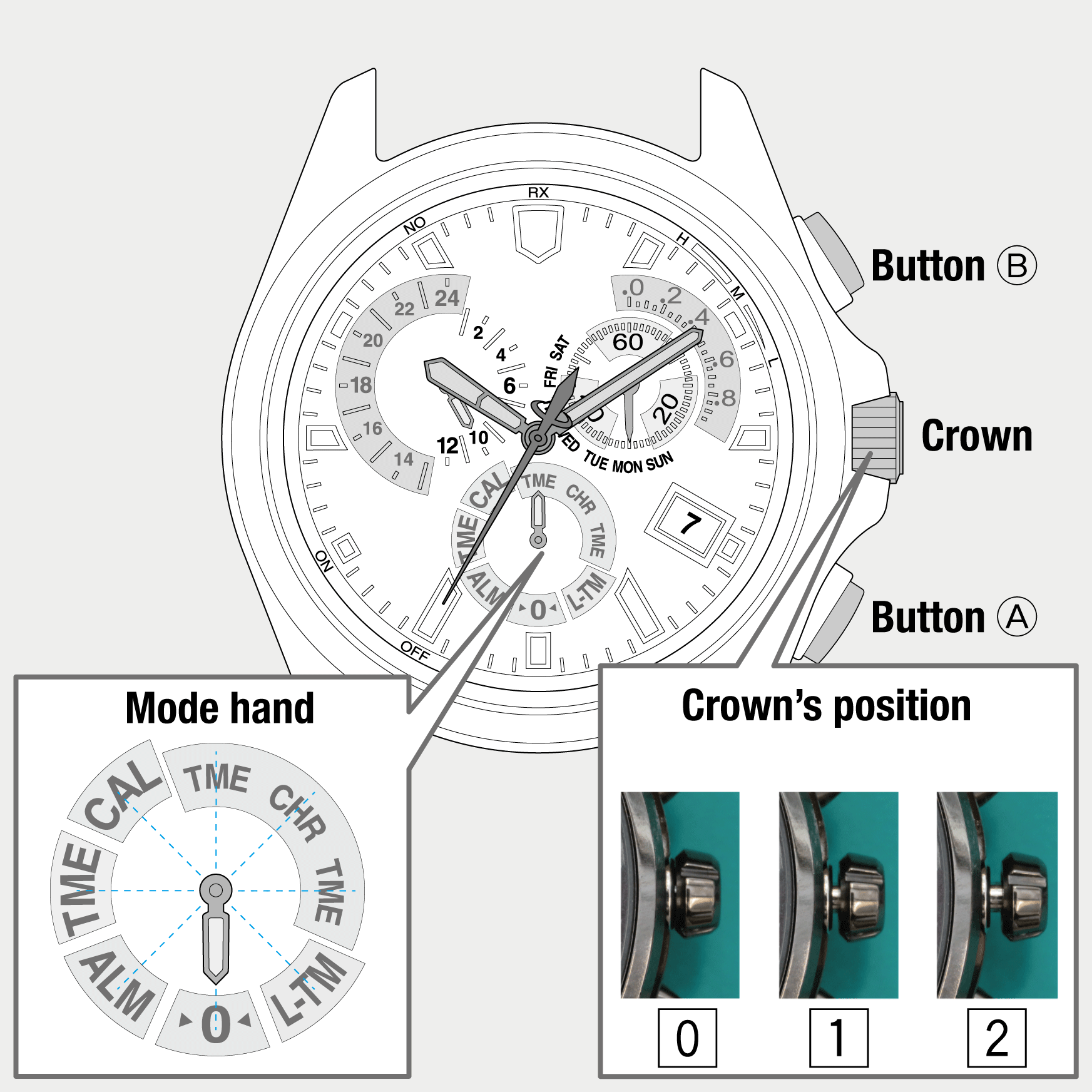

- Pull the crown out to position 1.
- Rotate the crown to change the mode to “► 0 ◄”.
- Checking the reference position
- Pull the crown out to position 2.
- Press and release the upper right button B repeatedly to change the hand/indication to be corrected.
- Rotate the crown to adjust the hand/indication.
- Repeat steps 5 and 6 to correct the reference position of all the hands and indication.
- Push the crown in to position 0.
- Pull the crown out to position 1.
- Rotate the crown to set the mode hand to “TME”.
- Push the crown in to position 0 to finish the procedure.
The second hand points to 30 seconds and stops.
The hands and indication move to their current reference position.
!
Turn the crown so that the mode hand will point to the center of the mode name securely.
!
Proceed to the next step when the hands and indication stop.
!
After the hands and indication stopped, check whether they are at correct positions referring to the figure below.
The reference position must be corrected if any one of the positions is incorrect.

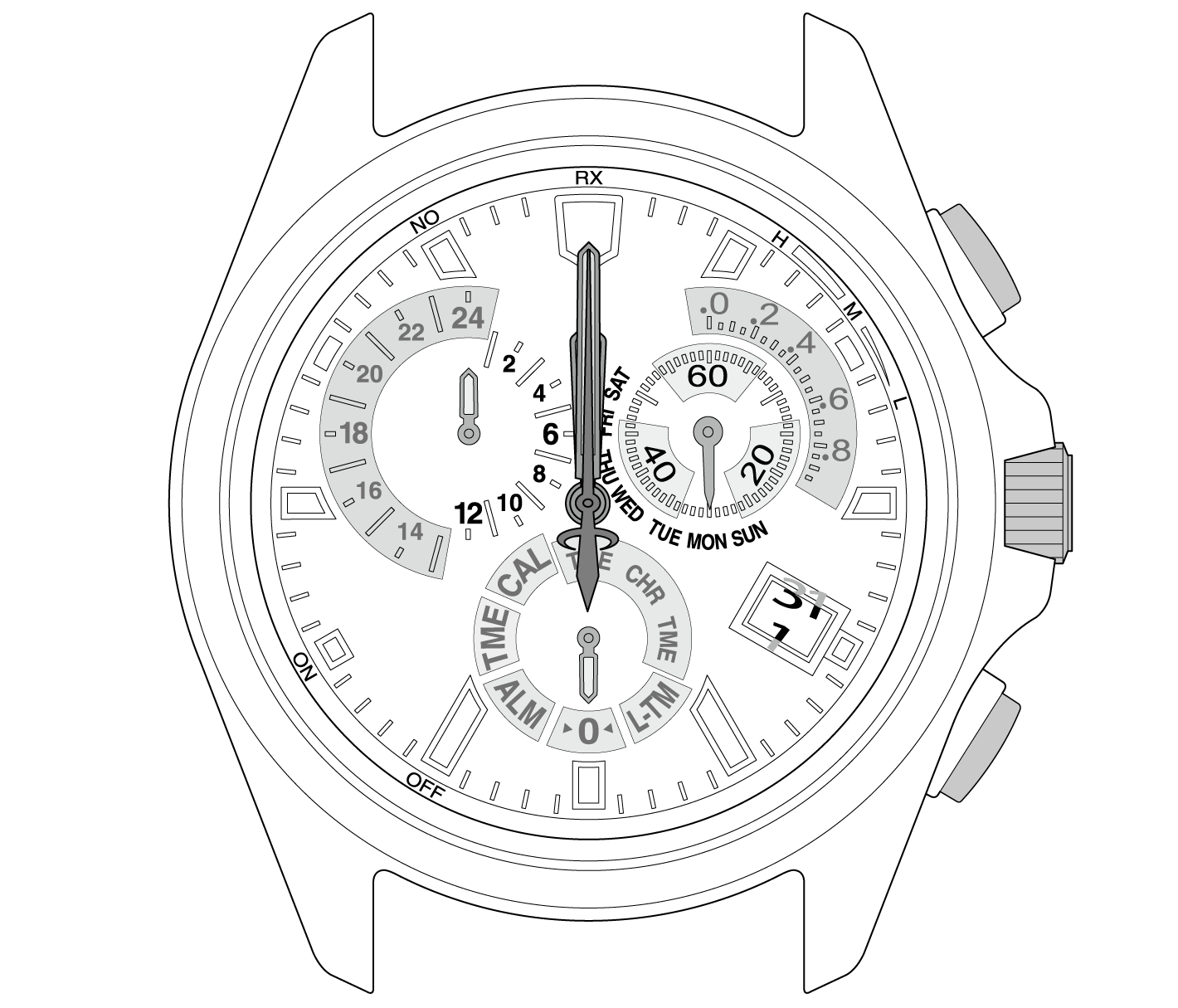

Correct reference positions
Hour, minute and second hands: 0 hour 00 minute 0 second
24-hour hand: “24”
Date indication: midway between “31” and “1”
Function hand: “MON” (straight below)
| Correct | No adjustment is required. Rotate the crown to change the mode to “TME” and push the crown in to position 0 to finish the procedure. |
|---|---|
| Wrong | Click here to proceed below. |
The position of the second hand becomes adjustable.
!
Each time you press the button, the target changes as follows:
Second hand → Hour/minute/24-hour hands → date indication → (back to the top)
!
The hands and indications slightly move when selected to show they become adjustable.
!
The second hand does not rotate counterclockwise.
!
The hour, minute and 24-hour hands move synchronously.
!
Date indication changes to the next as the function hand rotates 5 times.
!
When you rotate the crown quickly a few times, the hand/indication will move continuously.
To stop the rapid movement, rotate the crown in either direction.
