Cal. No. E67*
Refine your searchE67*
Receiving the time signal
Checking the previous signal reception result
!
For details of signal reception, see “About signal reception”.
- Pull the crown out to position 1.
- Rotate the crown to set the mode hand to “TME” or “L-TM”.
- Push the crown in to position 0.
- Press and release the lower right button A.
- Press and release the lower right button A to finish the procedure.
The second hand points to 30 seconds and stops.
!
Turn the crown so that the mode hand will point to the center of the mode name securely.
!
After indication is changed to that of the mode you chose, proceed to the next step.

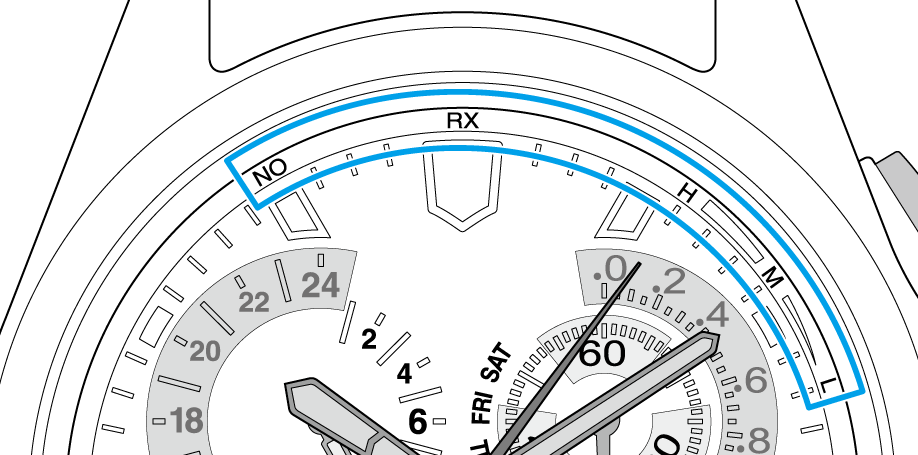

The second hand indicates the result of the last signal reception.
| H | Signals were received under a very good condition. |
|---|---|
| M | Signals were received under a good condition. |
| L | Signals were received under a not very good condition. |
| NO | Reception failed. |
!
“H”, “M” or “L” is also indicated during signal reception.
They indicate condition of reception environment and are not related to reception performance of the watch.
!
The hand returns to normal indication automatically in 10 seconds without pressing the button.
