Cal. No. U60*
Refine your searchU60*
Receiving the time signal
Checking the previous signal reception result
!
For details of signal reception, see “About signal reception”.
- Pull the crown out to position 1.
- Rotate the crown to set the mode hand to [TME] or [CAL].
- Push the crown in to position 0.
- Press and release the lower right button A.
- Press and release the lower right button A to finish the procedure.
An area name and “(M)” appear alternately on the digital indication (L).
!
Turn the crown so that the mode hand will point to the center of the mode name securely.

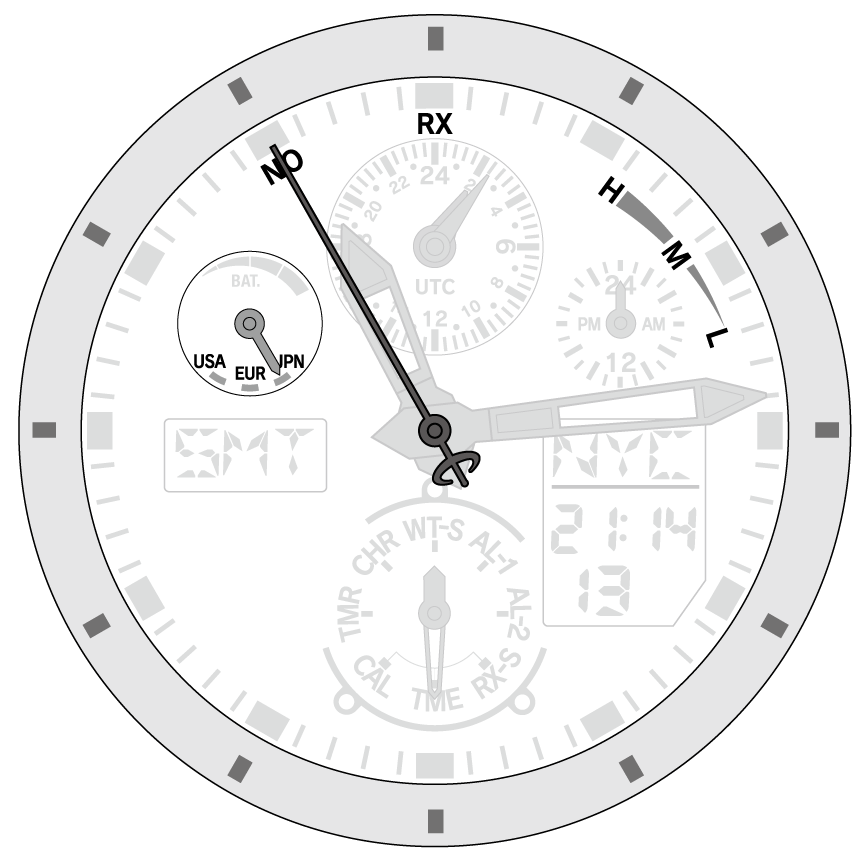

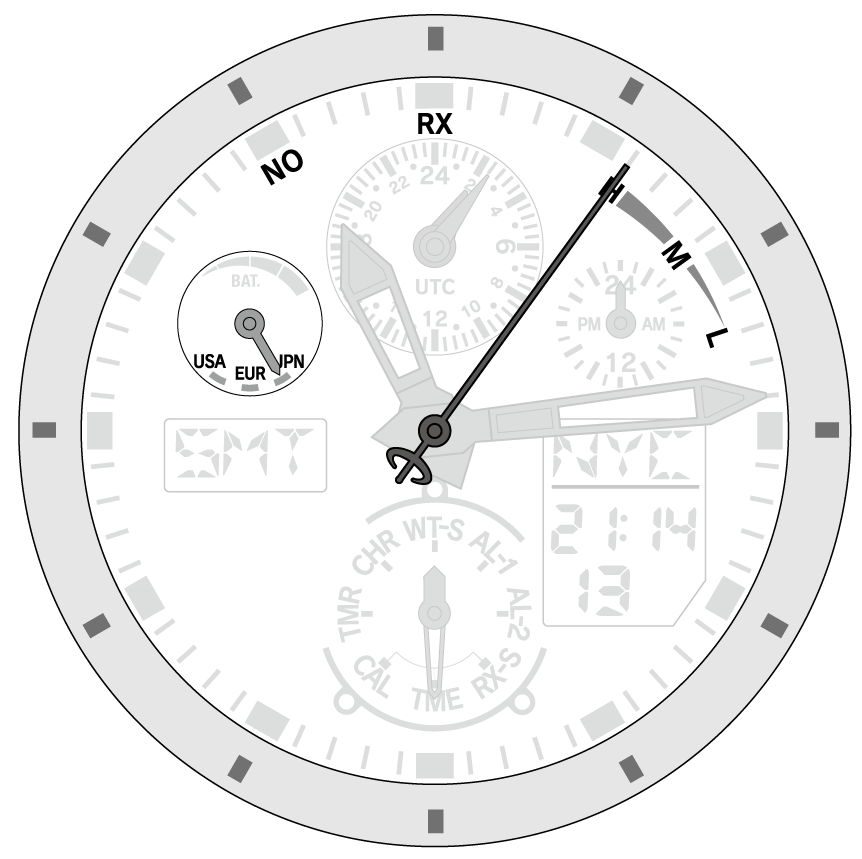

The second hand indicates the result of the last reception and the power reserve indication hand points a signal station.
!
The current summer time setting blinks on the digital indication (L).
| Indication of the second hand | Meaning | ||
|---|---|---|---|
| Success | H |  |
Signals were received under a very good condition. |
| M | Signals were received under a good condition. | ||
| L | Signals were received under a not very good condition. | ||
| Fail | NO |  |
Reception failed. |
!
“H”, “M” or “L” is also indicated during signal reception.
They indicate condition of reception environment and are not related to reception performance of the watch.
| Indication of the power reserve indication hand | Signal station | |
|---|---|---|
| EUR |  |
Germany |
| JPN |  |
Japan | USA |  |
United States |
The watch returns to normal indication.
!
The hand returns automatically in 10 seconds without pressing the button.
!
This operation can also be execute when the mode of the watch is [RX-S].
