Using functions of the dedicated app
Checking the power reserve and power generation amount of the watch

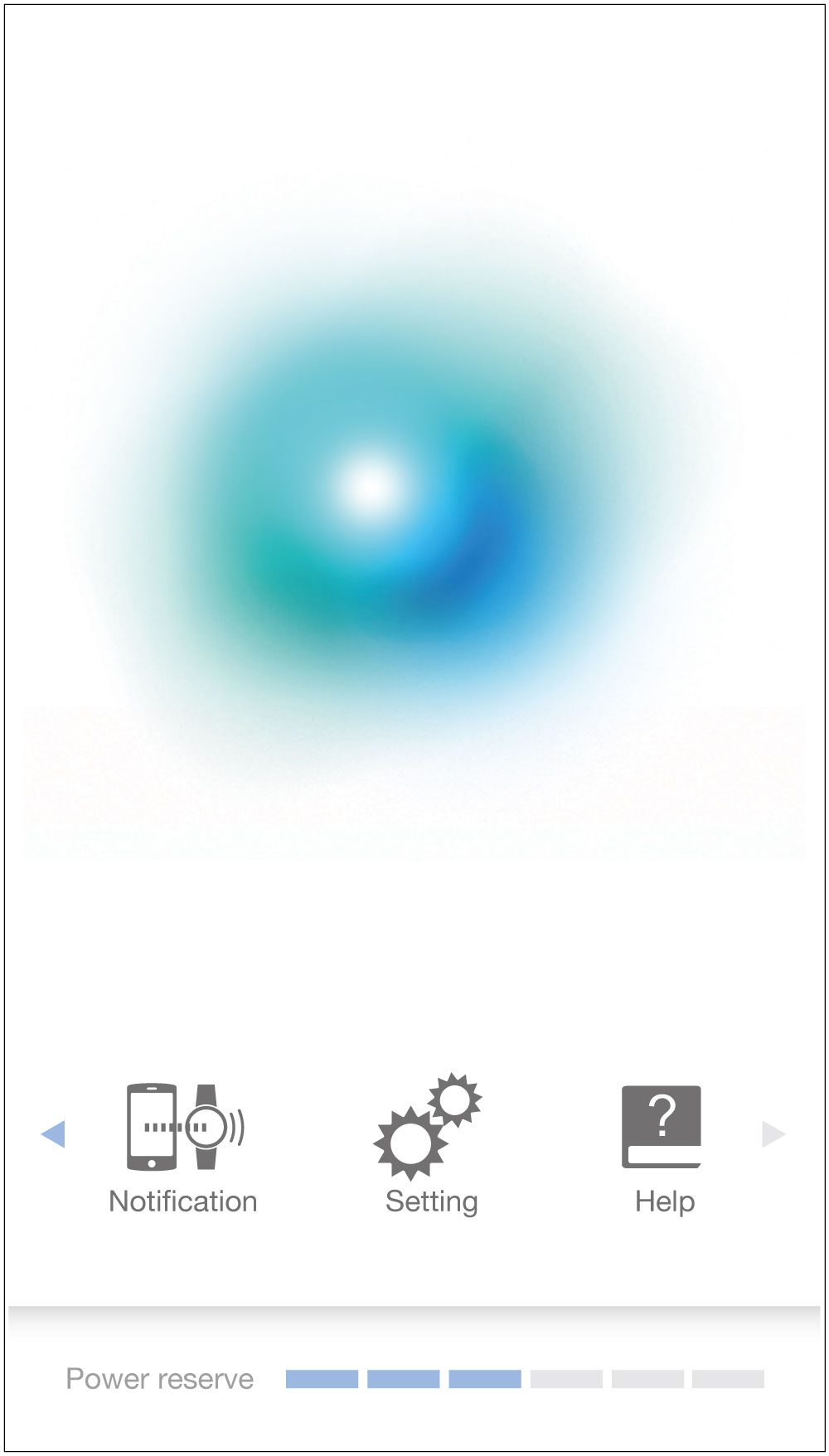

The current power reserve of the watch ([Power reserve]) is indicated in 7 levels on the bottom of the home screen of the dedicated app while the watch is connected with the smartphone.
The current power generation amount of the watch is indicated in a light pattern on the center of the screen.
!
Tap [Back] (back) or [Cancel] (cancel) on the upper left of the screen to show the home screen when the screen of the app does not indicate power reserve.

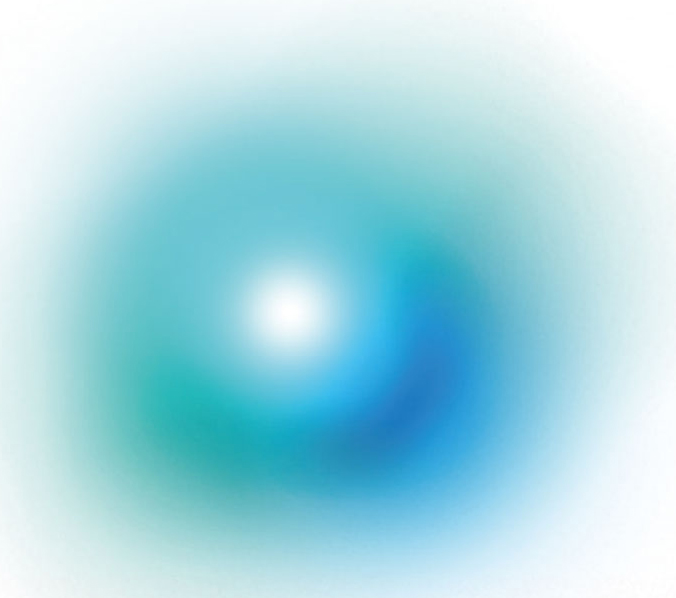

 | Indication of current power generation amount The color of the pattern indicates the amount and it changes gradually from blue → green → yellow as the amount getting larger. |
|
 | Power reserve level "3" is indicated on the illustration. |
Indication of power reserve in levels
- See the table of "Standard use with the smartphone" in "Specifications" for details such as usage conditions of "When using connection" of duration.
- Connection is disconnected when the power reserve level becomes "1". However, basic functions of the watch are still available.
- When you try to connect with the smartphone while power reserve level is "1", the second hand "
OFF" just after pointing " ON" to show connection is unavailable. However, the watch can get time information in that case. - Some basic functions become unavailable while the insufficient charge warning function is active.
- The power reserve just before disconnection is indicated in level in pale colors while the watch is disconnected.
When using connection
| Level | Indication | Connection time (approx.) | Meaning |
|---|---|---|---|
| 6 |  | 13 - 12 months | Power reserve is sufficient. |
| 5 |  |
||
| 4 |  |
||
| 3 | | 12 - 11 months | Power reserve is not sufficient. |
| 2 |  | 11 - 10 months |
|
| 1 |  | 10 months (Time reception only) | Charge immediately. |
| 0 |  | Connection is unavailable. | |
| No indication appears when the level is 0 as the watch cannot make connection with the phone. ! At the level 0, the second hand starts to move once every two seconds ("When the watch reaches a low charge state (insufficient charge warning function)"). |
|||
When not using connection
| Level | Indication | Connection time (approx.) | Meaning |
|---|---|---|---|
| 6 | | 24 - 18 months | Power reserve is sufficient. |
| 5 | |
||
| 4 | |
||
| 3 | | 18 - 14 months | Power reserve is not sufficient. |
| 2 | | 14 - 10 months |
|
| 1 | | 10 months - 3 days | Charge immediately. |
| 0 | | 3 days | |
| No indication appears when the level is 0 as the watch cannot make connection with the phone. ! At the level 0, the second hand starts to move once every two seconds ("When the watch reaches a low charge state (insufficient charge warning function)"). |
|||
